安装方式：杆装固定式

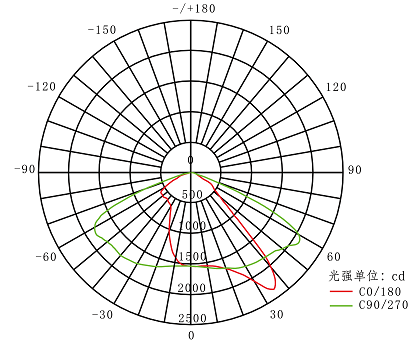

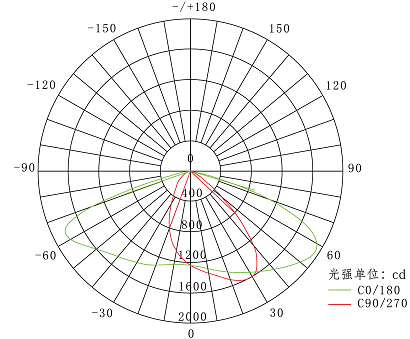

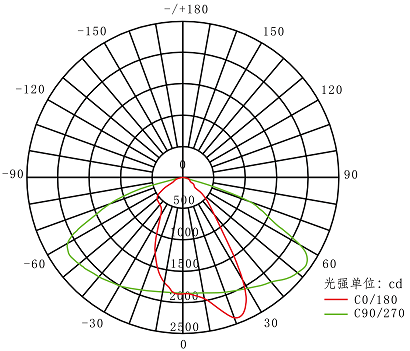

照明特点：LED 路灯，非对称蝙蝠翼配光
电器描述：常亮电器驱动
表面工艺：灯体主要部件采用高压压铸铝组成，抗冲击耐腐蚀；LED模组化设计，具有独立的配光设计及散热，维护简单
后盖材质：铝制壳体
面板材质：LED模组
IP等级：IP66
电气防护等级：class I

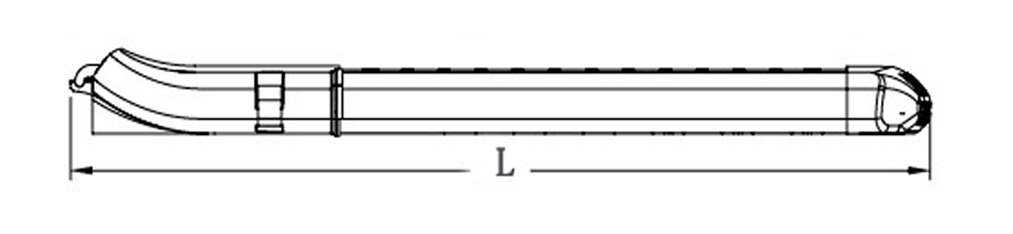

| 光源类型 | 色温 | 模组数 | 显色性 | 功率 | 透镜 | L（mm） | 产品描述 |
| LED | 3000k | 1 | ＞70 | 60w | 3C | 511mm | CBR30713C730C |
| LED | 3000k | 2 | ＞70 | 120w | 3C | 591mm | CBR30723C730D |
| LED | 3000k | 3 | ＞70 | 180w | 3C | 671mm | CBR30733C730E |
| LED | 3000k | 4 | ＞70 | 240w | 3C | 751mm | CBR30743C730F |
| LED | 3000k | 5 | ＞70 | 300w | 3C | 831/911mm | CBR30753C730G |
| LED | 3000k | 6 | ＞70 | 360w | 3C | 911/991mm | CBR30763C730H |
| LED | 3000k | 1 | ＞70 | 60w | 4C | 511mm | CBR30714C730C |
| LED | 3000k | 2 | ＞70 | 120w | 4C | 591mm | CBR30724C730D |
| LED | 3000k | 3 | ＞70 | 180w | 4C | 671mm | CBR30734C730E |
| LED | 3000k | 4 | ＞70 | 240w | 4C | 751mm | CBR30744C730F |
| LED | 3000k | 5 | ＞70 | 300w | 4C | 831mm/911mm | CBR30754C730G |
| LED | 3000k | 6 | ＞70 | 360w | 4C | 9111mm/991mm | CBR30764C730H |
| 光源类型 | 色温 | 模组数 | 显色性 | 功率 | 透镜 | L（mm） | 产品描述 |
| LED | 3000k | 1 | ＞70 | 60w | 3C | 511mm | CBR30713C730C |
| LED | 3000k | 2 | ＞70 | 120w | 3C | 591mm | CBR30723C730D |
| LED | 3000k | 3 | ＞70 | 180w | 3C | 671mm | CBR30733C730E |
| LED | 3000k | 4 | ＞70 | 240w | 3C | 751mm | CBR30743C730F |
| LED | 3000k | 5 | ＞70 | 300w | 3C | 831/911mm | CBR30753C730G |
| LED | 3000k | 6 | ＞70 | 360w | 3C | 911/991mm | CBR30763C730H |
| LED | 3000k | 1 | ＞70 | 60w | 4C | 511mm | CBR30714C730C |
| LED | 3000k | 2 | ＞70 | 120w | 4C | 591mm | CBR30724C730D |
| LED | 3000k | 3 | ＞70 | 180w | 4C | 671mm | CBR30734C730E |
| LED | 3000k | 4 | ＞70 | 240w | 4C | 751mm | CBR30744C730F |
| LED | 3000k | 5 | ＞70 | 300w | 4C | 831mm/911mm | CBR30754C730G |
| LED | 3000k | 6 | ＞70 | 360w | 4C | 9111mm/991mm | CBR30764C730H |
